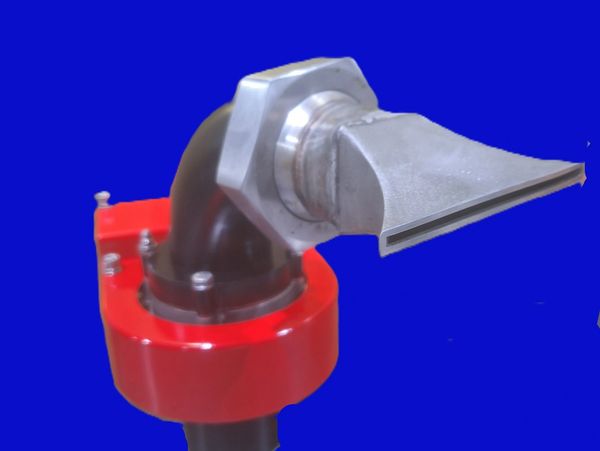

Single Axis Sprays

All stainless steel construction. 2 inch BSP inlet, 2 inch BSM outlet. Greaseable. Ball bearings and rotary lip seals. The jet may be set to any angle. The rotation is not limited. DC 24 volt but will run on 12v. This is a tough unit built to last a life time.

A 45 degree adaptor can be used to adjust the vertical angle which increases the range and widens the watered area.

Includes :

One flat spray from the range.

1 off 20 meter IP67-rated motor cable with plug-in connection to  centre spray to simplify fit-up and enhance reliability.

1 off momentary 2 direction switch

With this pipework a wide range of tasks can be performed. see the video section for more information. Pipework can be made in stainless steel or galvanised steel. It is mounted using stauf clamps. A 45 degree adaptor and a 90 degree adaptor are shown here. They can be moved to any position and are used to adjust the angle of the spray or to adjust range and droplet fall characteristics. They can be removed when not needed.

Rear spray assembly includes:

3 x flat sprays from the range.

2 x DC50A corner sprays

1 x DC50B centre spray

1 x 45 degree adaptor

1 x 90 degree adaptor

4 pieces custom pipe work

3 off 20 metre M12 IP67 cable and switch sets
