2 versions are available (kit)

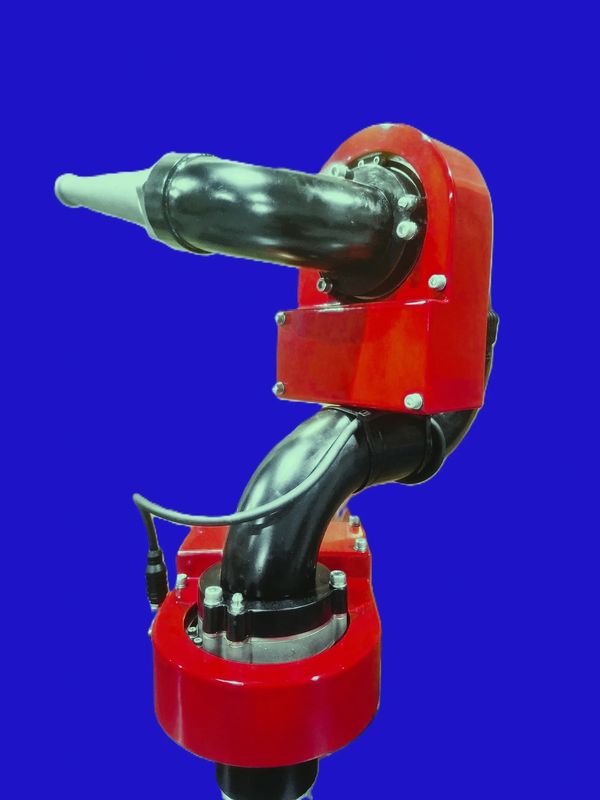

All stainless steel construction. 2 inch BSPP inlet and 2 inch BSPP outlet. Grease nipples make it easy to grease. Ball bearings and rotary lip seals on both axes. Water-resistant BLDC electric motors. Simple plug in wiring. Built to last.

Features

• Reversible top axis at the press of a button.
• Variable speed.
• 1 or 2 step train, run and drag function. Semi automated operation.
• 270 degree adjustable top axis rotation. Top axis rotation limit is set by moving the axis mounted stops.
• 500 degree bottom axis rotation. Bottom axis stop can be moved but cable freedom must be considered.
• Although designed for 24 volt systems it is also capable of running on 12 volts.
• Auxiliary supply voltage and 12 volt power connection (12 volt for intermittent use only) available on circuit board. e.g. for variable jet.

Component list :

•  Joystick controller.
• 2 off 20 meter IP67  motor cables with plugs on both ends 1 male cable and 1 female cable).
• 1 off 20 metre water cable with plug-in connection to controller unterminated for solenoid.
• 1 off 5 metre power  cable with plug-in connection to controller unterminated for power connection.
• 1 Straight bore nozzle
• Installation and operation manual
